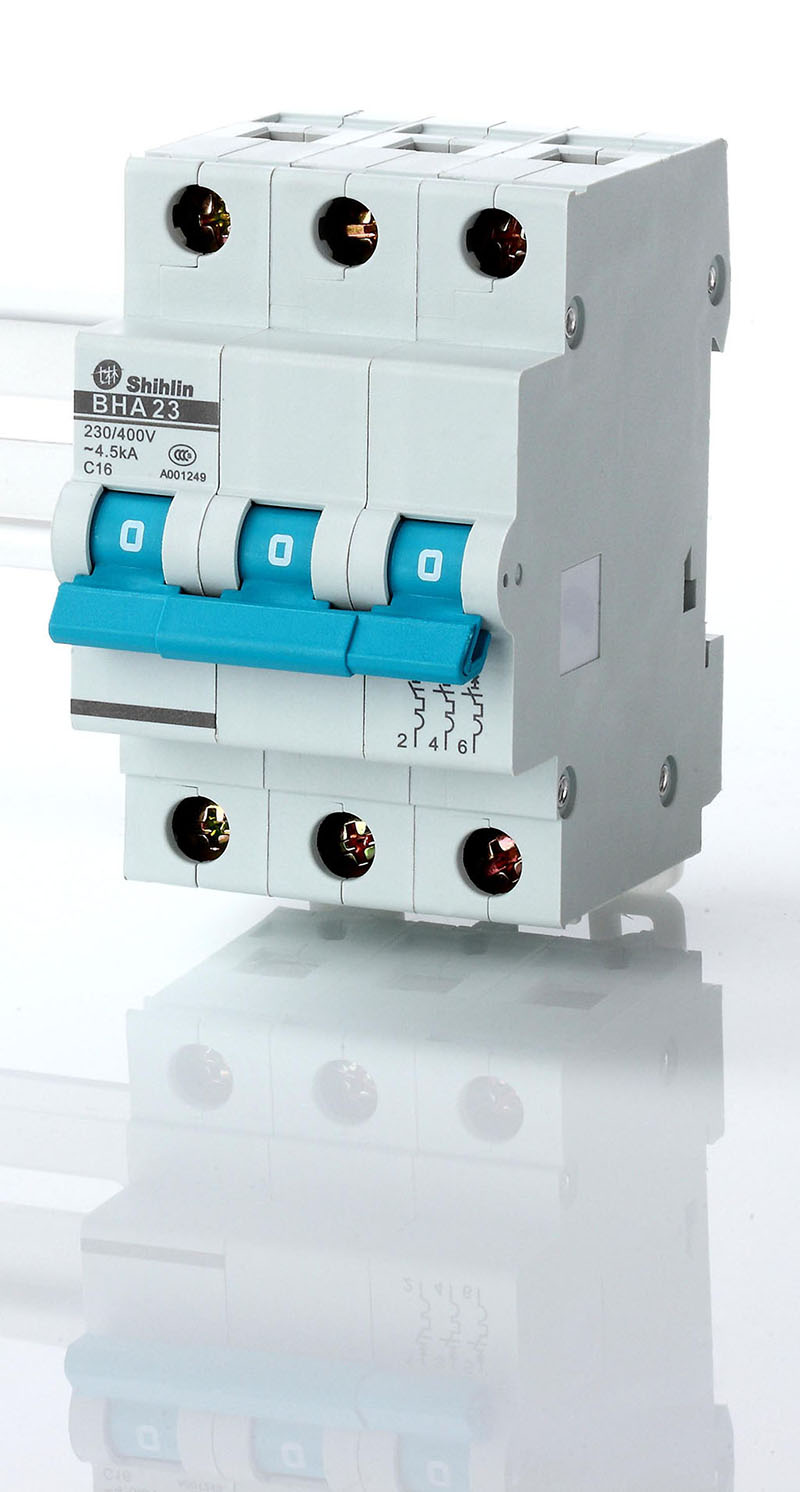

  • /UpFiles/30/Goods_NPics707031024777534630/OB-BHA-23.jpg

Din-Rail Type

BHA
Contact
Tel:+886-2-2541-9822
Email:B.Export@seec.com.tw
Specification

Specification

◆Standard: IEC60947-2, IEC60898, GB10963
◆Rated insulation voltage Ui: AC 690V
◆Rated voltage: AC 230/400V, DC125V
◆Rated current In:1.2.3.4.5.6.10.16.20.25.32.40.50.63A
◆Pole: AC - 1P 2P 3P 4P
DC - 1P 2P
◆Breaking capacity:
AC - 4.5/6/10kA
DC - 10kA
◆C/D TYPE
◆AL.AX.SHT.UVT.OVT



Applications

  • Home & Factoy Use
  • Circuit Protection
Download
Category
Category Item Description
Catalog
Catalog
Dimension
Characteristics Curve
Dimension
Characteristics Curve
